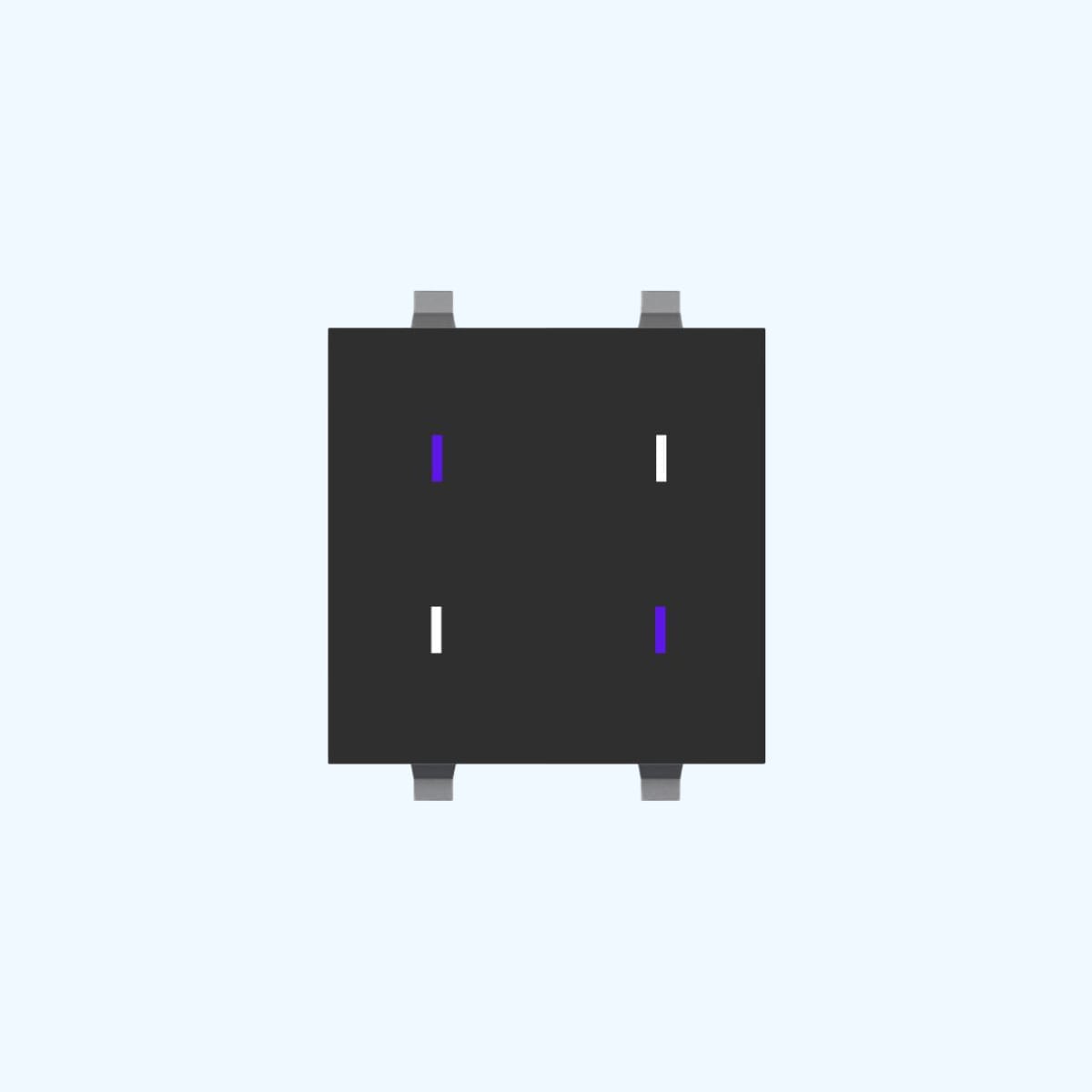

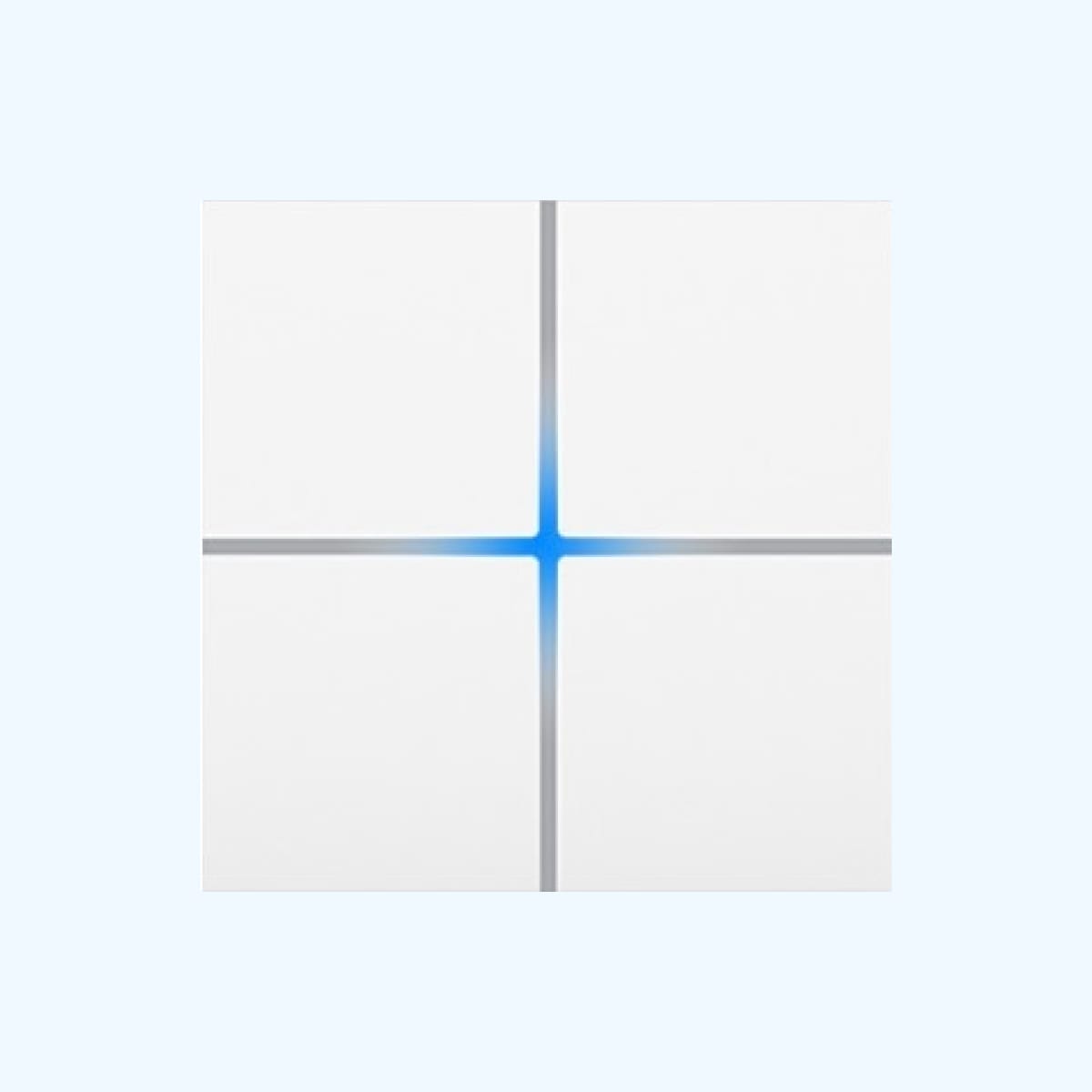

HD Touch Modular V2
SKU: HS102
Dimensions:
Length: 50mm
Width: 49mm
Height: 50mm
Weight: 100g
Technical Specifications:
Power input: 240V AC, 50/60Hz
Maximum Supportive Per Load: 25A
Loads:
Resistive:
Up to 2000W Geyser
Inductive:
Up to 1700W Inverter AC
Capacitive:
Up to 18W – 14 Lights
36W – 6 Light
100W Profile Light
Typical standby power:<0.8W
Operating Temperature: 0℃ to 70℃
Testing Switching Cycles: 1,00,000 Ultra Flash touch
Connectivity: Wi-Fi, Connects to 2.4 GHz, Wi-Fi 802.11 b/g/n
No of Channels: 1
Safety and Compliance:
- Surge Protection – 2.5KV (Tested Up to 4KV)
Warranty:
Warranty Period: 2 Years from the date of activation
Package Contents:
HD Touch Modular V2
